In an effort to provide you advantage and enlarge our business enterprise, we even have inspectors in QC Staff and assure you our greatest provider and item for Camshaft Needle Bearings , high quality precision needle rollers , Loose Precision Needle Roller , We have been one of your largest 100% manufacturers in China. A lot of large trading businesses import products and solutions from us, so we can easily give you the most beneficial price tag with the same quality for anyone who is interested in us.
Chinese wholesale Ceramic Needle Bearings - AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565 – Ziguang Detail:

Overview
Quick Details
Structure:
Cylindrical
Type:
Roller
Brand Name:
SUMA of axk roller bearing
Bore Size:
4 – 160 mm
Outside Diameter:
14 – 200 mm
Model Number:
AXK4565
Precision Rating:
P6
Seals Type:
open
Number of Row:
Single Row
Place of Origin:
Jiangsu, China (Mainland)
Product Name:
axk roller bearing
Thickness:
2-4mm
Dynamic load:
4100-125000
static load:
7900-1000000
OD:
14-200MM
ID:
4-160MM
Application:
gearboxes;reducers;electrical machine;other machine
OEM:
accept
Delivery:
10-15days
Package:
single box or as your requirements

Supply Ability
Supply Ability:
200000 Piece/Pieces per Month axk roller bearing

Packaging & Delivery
Packaging Details
single box or as your requirements for axk roller bearing
Port
Shanghai ; Ningbo for axk roller bearing
Lead Time :
7 days for axk roller bearing

.richtext [data-maya] { width: 750px; font-size:14px; }

AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

Product Description

Features of axk roller bearing

1)  Needle bearing type: AXK,NTA,TC,AS,LS,GS,51100,K81101,TRA,TRB,TRC,TRD



2) with oil hole



3) Material: Chrome/Stainless steel



4) Shield/closure:  Open



5)Precision : ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)



6) Vibration and Noise level :  V2, V1, Z1, Z2

7) Internal clearance: C0, C2, C3



8) Packing: industrial packing or individual box packing, carton, pallet .

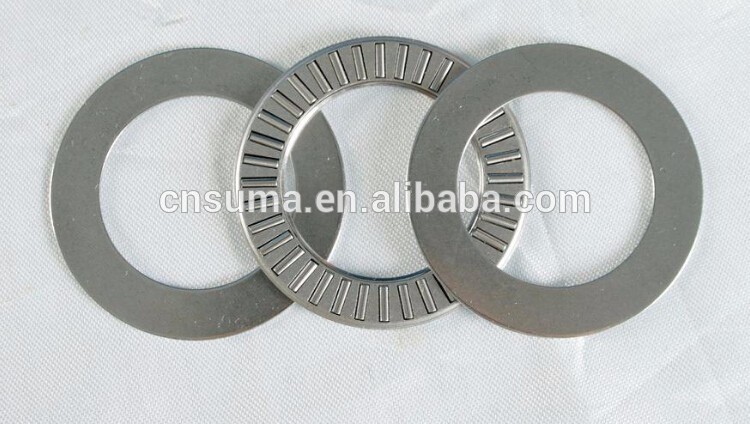

Detailed Images
AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565
AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565
AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565
AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

Catalogue of AXK roller bearing for your choice

AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565





shaft bearing  dimension(mm)  Basic Load Rating(N) limited speed(rpm) width
dia. type (g)
(mm)   original Inner Outer Width dynamic static grease oil
type Dc1 Dc Dw.
4 AXK 0414 TN   4 14 2 4100 7900 14000 5500 0.7
5 AXK 0515 TN   5 15 2 4000 8500 13000 4800 0.8
6 AXK 0619 TN   6 19 2 6000 12000 12000 4200 1
8 AXK 0821 TN   8 21 2 7100 13500 11000 4000 2
10 AXK 1024   10 24 2 7800 24000 9500 3600 3
12 AXK 1226   12 26 2 8200 26700 7200 3200 3
15 AXK 1528   15 28 2 9500 33000 6500 3000 4
17 AXK 1730   17 30 2 10200 36500 5500 2800 4
20 AXK 2035   20 35 2 11000 43000 5000 2600 5
25 AXK 2542   25 42 2 12500 538000 4500 2300 7
30 AXK 3047   30 47 2 14000 656000 4100 2100 8
35 AXK 3552   35 52 2 15500 770000 3700 2000 10
40 AXK 4060   40 60 3 25000 1100000 3200 1900 16
45 AXK 4565   45 65 3 25800 1250000 3000 1700 18
50 AXK 5070   50 70 3 27600 1370000 2800 1600 20
55 AXK 5578   55 78 3 35000 1950000 2600 1500 28
60 AXK 6085   60 85 3 38600 2400000 2500 1100 33
65 AXK 6590   65 90 3 41000 2580000 2400 1000 35
70 AXK 7095   70 95 4 50000 2670000 2100 950 60
75 AXK 75100   75 100 4 51000 2750000 1900 900 61
80 AXK 80105   80 105 4 52400 2850000 1800 870 63
85 AXK 85110   85 110 4 54000 3000000 1700 850 67
90 AXK 90120   90 120 4 66000 4100000 1580 800 86
100 AXK 100135   100 135 4 76000 5570000 1400 770 104
110 AXK 110145   110 145 4 82000 6000000 1300 740 122
120 AXK 120155   120 155 4 84800 6620000 1200 700 131
130 AXK 130170   130 170 5 110000 9300000 1100 660 205
140 AXK 140180   140 180 5 115000 9100000 1000 620 219
150 AXK 150190   150 190 5 118000 9600000 950 580 232
160 AXK 160200   160 200 5 125000 10000000 900 500 246
  AX 715   7 15 2.3 3100 3250 6400 18400 0.0016
  AX 816   8 16 2.3 3100 7900 6300 18000 0.0017
  AX 1022   10 22 2.8 6200 15300 4700 13700 0.0044
  AX 1022   10 22 4 6200 15300 4700 13700 0.0068
  AX 1528   15 28 4 8100 26900 3600 10500 0.0098
  AX 2542   25 42 5 13100 58000 2300 6600 0.0257
  AX 2744   27 44 2.8 13700 61900 2200 6200 0.0127
  AX 4060   40 60 2.8 20000 110000 1500 4400 0.0239
  AX 4565   45 65 2.8 21000 123000 1400 4000 0.0247
  AXW 10   10 27 3/3.2 9200 25500 6000 14000 8.3
  AXW 12   12 29 3/3.2 9900 29000 5500 13000 9.1
  AXW 15   15 31 3.5/3.2 11300 36000 5200 11000 10.1
  AXW 17   17 33 3.5/3.2 11900 39500 4500 10000 11
  AXW 20   20 38 3.5/3.2 13100 46500 4000 8500 14
  AXW 25   25 45 4/3.2 14700 58000 3000 7000 19.5
  AXW 30   30 50 4/3.2 16300 7000 2000 6000 22
  AXW 35   35 55 4/3.2 17800 81000 1700 5500 26.6
  AXW 40   40 63 4/4.2 28000 114000 1500 4700 39.2
  AXW 45   45 68 4/4.2 30000 128000 1200 4300 43.4
  AXW 50   50 73 4.5/4.2 32000 143000 1000 3900 49.2





Needle roller thrust bearings are fitted with a form-stable cage to reliably guide and retain a large number of needle rollers. The diameter deviations of the rollers within one assembly are within 2 µm, enabling these bearings to accommodate heavy axial loads and shock loads. These bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings will take up no more space than a conventional thrust washer.

Packaging & Shipping

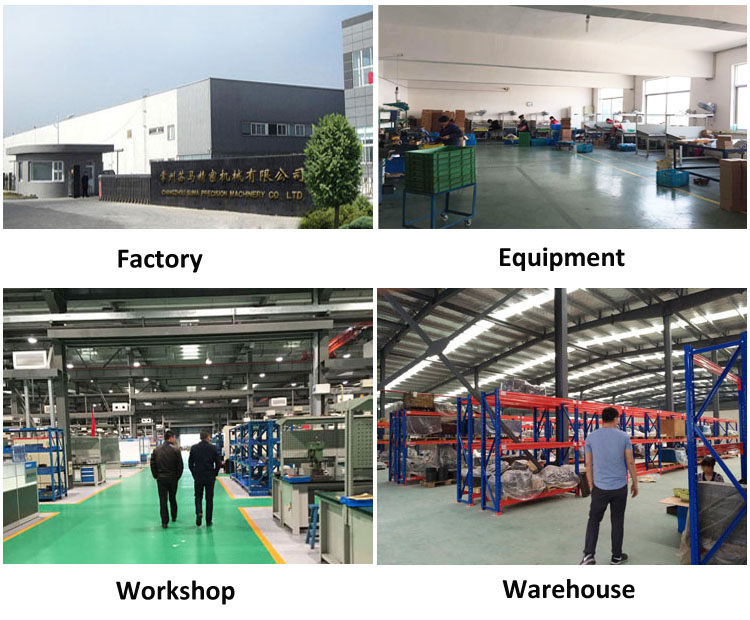

Company Information

AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

Clients Visit
AXK4565 Thrust Needle Roller Bearing Surface Bearing AXK 4565

FAQ

Q: How do you pack the AXK roller bearing ?

A: Usually axk roller bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of axk roller bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver axk roller bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
