China FC FCB Drawn Cup Needle Bearing Roller Bearing Manufacturer and Supplier

FC FCB Drawn Cup Needle Bearing Roller Bearing

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

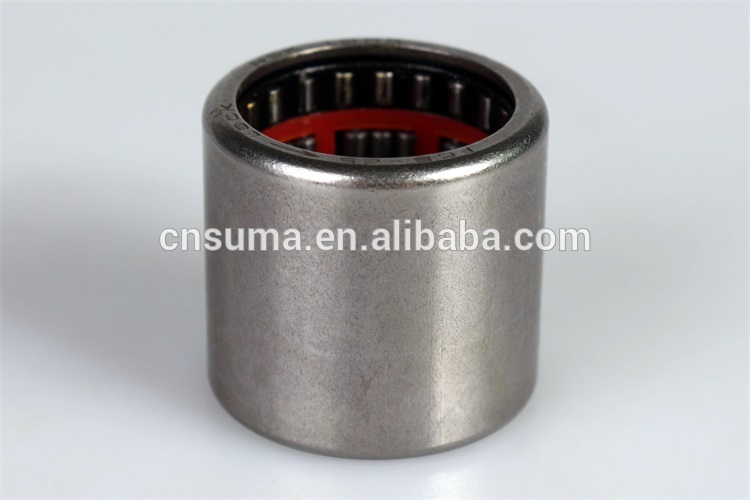

FC FCB Drawn Cup Needle Bearing Roller Bearing

Product Description

Data Sheet

Item	FC FCB
Material	Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner dia.	4-42 mm
Outer dia.	8-42 mm
Thickness	6-30 mm
Torque capacity	0.34-121 Nm
Weight	1-58 g
Package	singer package or as your requirements
Delivery time	7-10 days

Feature

Three pieces needles equipped to be locking assembly function.
Torque increases double of the normal HF Model.
Allow high indexing frequencies due to their low mass.

Different Sizes For Your Reference

Item	Weight g	Main Dimension
		Fw mm	D mm	C mm	Torque Nm
FC4K	1	4	8	6	0.34
FC6	3	6	10	12	1.76
FC6K	3	6	10	12	1.76
FC8	4	8	14	12	5.3
FCL8K	3.5	8	12	12	5
FC10	4.8	10	16	12	6
FCL10K	4	10	14	12	5.3
FC12	11	12	18	16	12.2
FC14K	13	14	20	16	17.3
FC16	14	16	22	16	20.5
FC20	17	20	26	16	28.5
FC25	30	25	32	20	66
FC30	36	30	37	20	90
FC35	40	35	42	20	121
FCB8	10	14	14	20	5
FCB10	15	16	16	20	10
FCB12	18	18	18	26	12.2
FCB16	22	22	22	26	20.5
FCB20	27	26	26	26	28.5
FCB25	44	32	32	30	66
FCB30	51	37	37	30	90
FCB35	58	42	42	30	121
