HFL283625 Drawn Cup Roller Clutch

Short Description:


Product Detail

Product Tags


Product Description

Description of HFL283625 Drawn Cup Roller Clutch

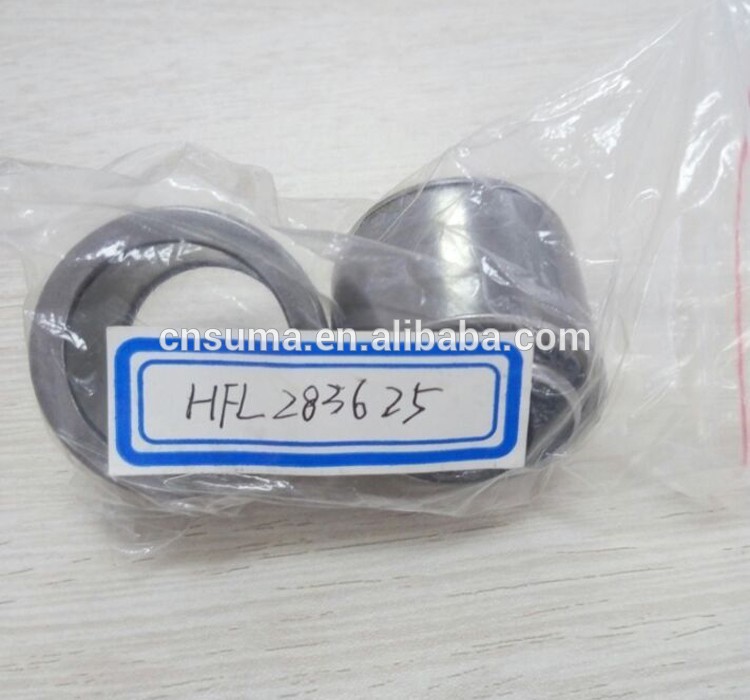

HFL283625 Drawn Cup Roller Clutch

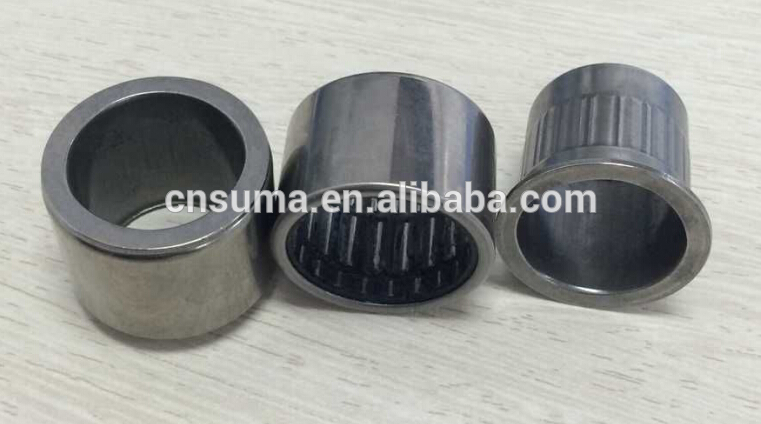

HFL283625 Drawn Cup Roller Clutch

Model HFL283625
Bore size (mm) 26.5
Outer race size (mm) 28
Thickness (mm) 36
Weight (g) 48

Introduce of HFL series One Way Heavy Duty Full Complement  Needle Roller Bearing

HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling’s both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.

Parameter of HFL series One Way Heavy Duty Full Complement  Needle Roller Bearing




Shaft

Diameter

Clutch

 Designation

Mass

 Approx



Borndary

 Dimensions

Torgue

 Ma

Basic Load

 Ratings

Limiting Speed
Fw D C  Rotating

 Shaft Min-1

Rotatng Outer

 Ring Min-1

C Co
KN
mm Plastic Springs Steel Springs g mm Nm rpm
HFL
3 HFL0308KF 3 3 3.6 8 1
4 HFL0408KF 3.5 4 8 8 1.5
6 HFL0615KF HFK0615 4 6 10 15 1.76 23000 13000
HFL0615KFR HFL0615R 4 6 10 15 0.5 23000 13000
HFL061012K 5 6 10 12 21000 12000
8 HFL081212K 6 8 12 12 20000 12000
HFL081412K 7 8 14 12 19000 12000
HFL0822KF HFL0822 7 8 12 22 3.15 17000 12000 4.05 4.15
HFL0822KFR HFL0822R 7 8 12 22 1 17000 12000
10 HFL1022KF HFL1022 8 10 14 22 5.3 14000 11000 4.3 4.65
HFL1022KFR HFL1022R 8 10 14 22 1.5 14000 11000
12 HFL1226 18 12 18 26 12.2 11000 8000 6.3 6.5
14 HFL1426 20 14 20 26 17.3 9500 8000 7.1 7.7
16 HFL1626 22 16 22 26 20.5 8500 7500 7.7 9
18 HFL1826 25 18 24 26 24.1 7500 7500 8.3 10.3
20 HFL2026 27 20 26 26 28.5 7000 6500 8.9 11.5
25 HFL2530 44 25 32 30 66 5500 5500 10.9 14.1
30 HFL3030 51 30 37 30 90 4500 4500 12.6 17.6
35 HFL3530 58 35 42 30 121 3900 3900 13 19.3
