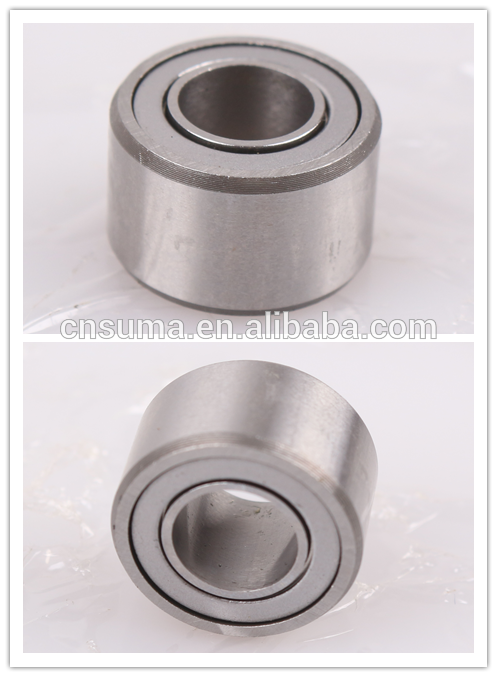

Non-standard Curtain Bearings OWC series One Way Needle Bearing in Power Metallurgy
Product Description
Description of Non-standard Curtain Bearings OWC series One Way Needle Bearing in Power Metallurgy
| Model | OWC for Curtain (Non-standard) |
| Bore size (mm) | 4-10 |
| Outer Dia.(mm) | 8-16 |
| Thickness (mm) | 5.4-8.4 |
| Torque (Nm) | 0.975-5.85 |
| Weight (g) | 1.6-3 |
Introduction of OWC series one way needle bearing
Parameter sheet of OWC series one way needle bearing
| Model | Torque
(Nm) |
Dimension(mm) | Weight
(g) |
|||||||
| Shaft
dia. d |
Outside
dia. D |
Width
B |
Groove
R |
Groove
dia. D2 |
Quantity
of Grooves |
Quantity
between Grooves θ |
Quantity
of Rollers |
|||
| OWC408 GXLZ | 0.975 | 4 | 8 | 6 | 0.6 | 7.4 | 4 | 90 | 4 | 1.6 |
| OWC408 GXRZ | ||||||||||
| OWC410 GXLZ | 2.45 | 4 | 10 | 5.4 | 1 | 9 | 2 | 180 | 4 | 1.8 |
| OWC410 GXRZ | ||||||||||
| OWC511 GXLZ | 2.67 | 5 | 11 | 5.4 | 1 | 10 | 3 | 120 | 6 | 2 |
| OWC511 GXRZ | ||||||||||
| OWC610 GXLZ | 2.93 | 6 | 10 | 8 | 0.6 | 9.6 | 6 | 60 | 6 | 2 |
| OWC610 GXRZ | ||||||||||
| OWC612 GXLZ | 3.57 | 6 | 12 | 5.4 | 1 | 11 | 3 | 120 | 6 | 2.3 |
| OWC612 GXRZ | ||||||||||
| OWC612 GXLZ
B=8.4 |
3.15 | 6 | 12 | 8.4 | 1 | 11.4 | 3 | 120 | 6 | 2.35 |
| OWC612 GXRZ
B=8.4 |
||||||||||
| OWC812 GXLZ | 2.27 | 8 | 12.2 | 5.4 | 0.6 | 11.6 | 6 | 60 | 6 | 3 |
| OWC812 GXRZ | ||||||||||
| OWC814 GXLZ | 3.75 | 8 | 14 | 5.4 | 1 | 13 | 3 | 120 | 6 | 2.8 |
| OWC814 GXRZ | ||||||||||
| OWC1016 GXLZ | 5.85 | 10 | 16 | 5.4 | 1 | 15 | 3 | 120 | 6 | 3 |
| OWC1016 GXRZ | ||||||||||
Note : Non-standard can be produced
