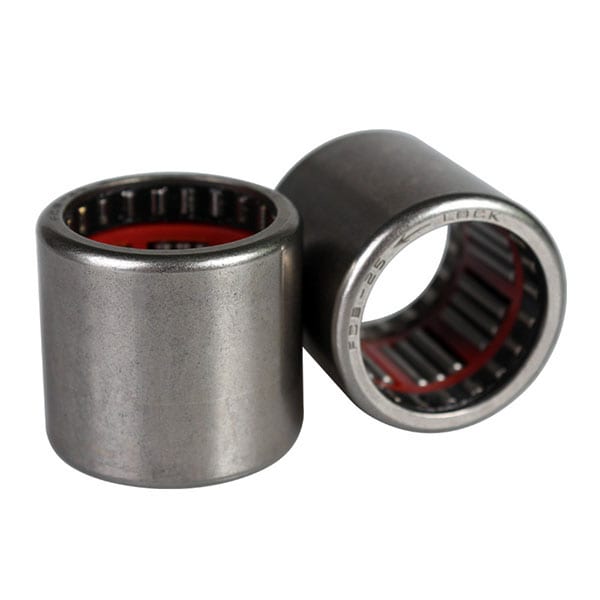

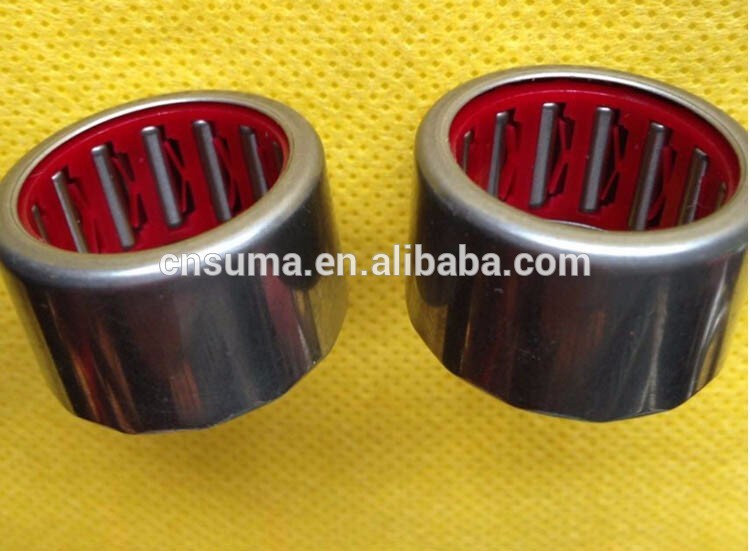

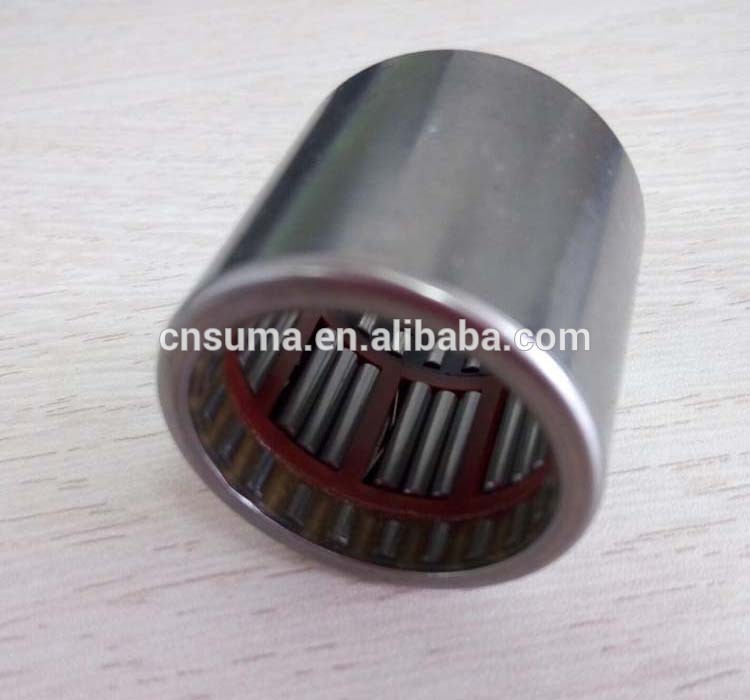

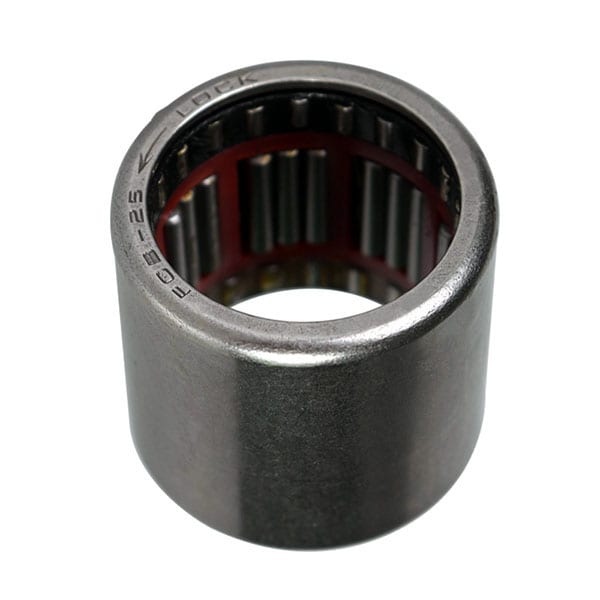

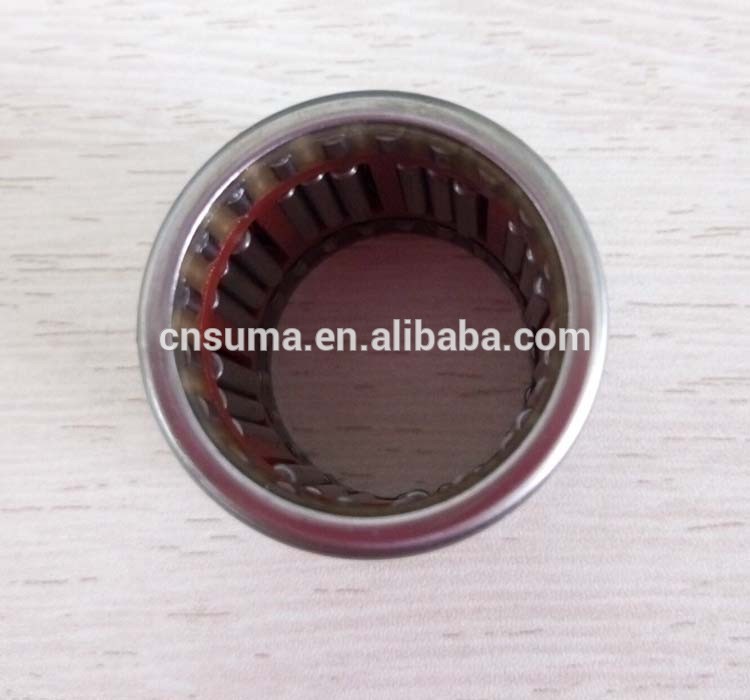

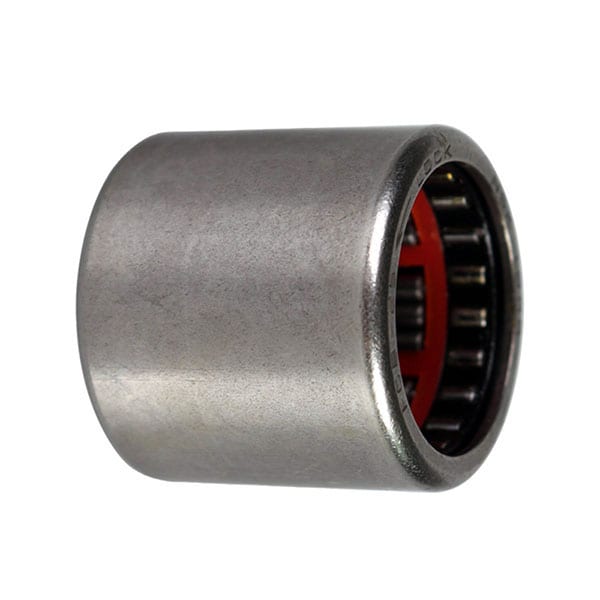

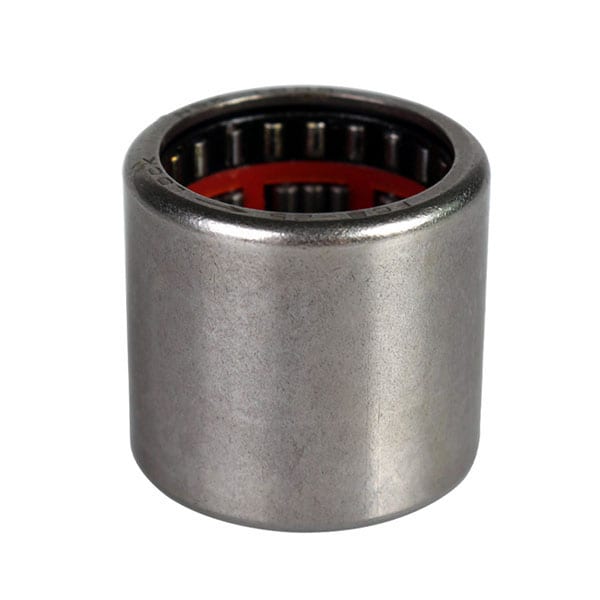

RCB 121616 Drawn Cup Hold Back Needle Roller Clutch Bearing

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Other Type
Brand Name:
SUMA OR OEM
Model Number:
RCB 121616
Place of Origin:
Jiangsu, China (Mainland)
Bore Size:
3.175 – 25.4 mm
Outside Diameter:
7.15 – 33.338 mm
Precision Rating:
P6
Seals Type:
Non-sealed
Product name:
RCB 121616 Drawn Cup Hold Back Needle Roller Clutch Bearing
Material:
ST14/GCr15/Stainless Steel
WEIGHT:
26.5 g
Inner Diameter:
19.05 mm
Outer diameter:
25.4 mm
Thickness:
25.4 mm
Port:
Shanghai NINGBO
Application:
Suitable for unidirectional rotation device
Package:
singer package or as your requirements
Delivery time:
5-7 Days

Supply Ability
10000 Piece/Pieces per Month RCB 121616

Packaging & Delivery
Packaging Details
singer package or as your requirements
Port
Shanghai;Ningbo
Lead Time :
5-7 days

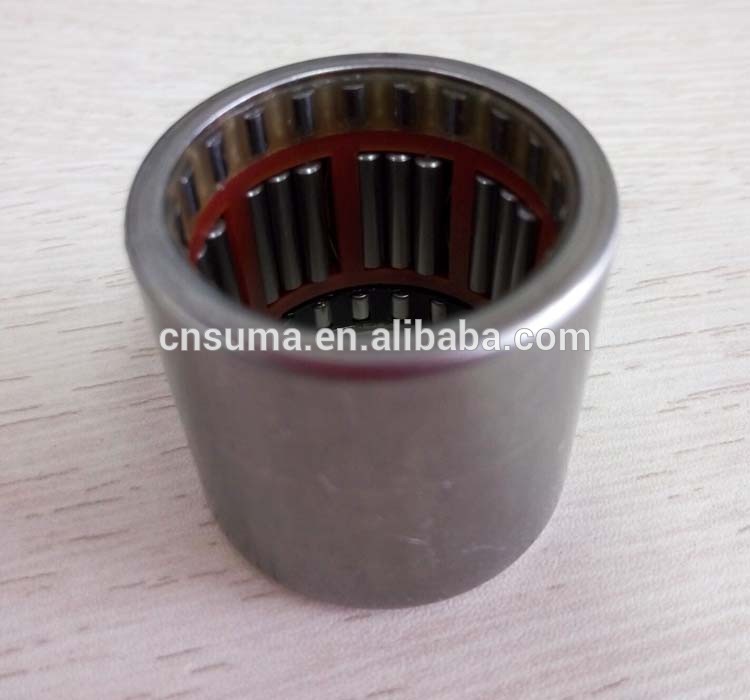

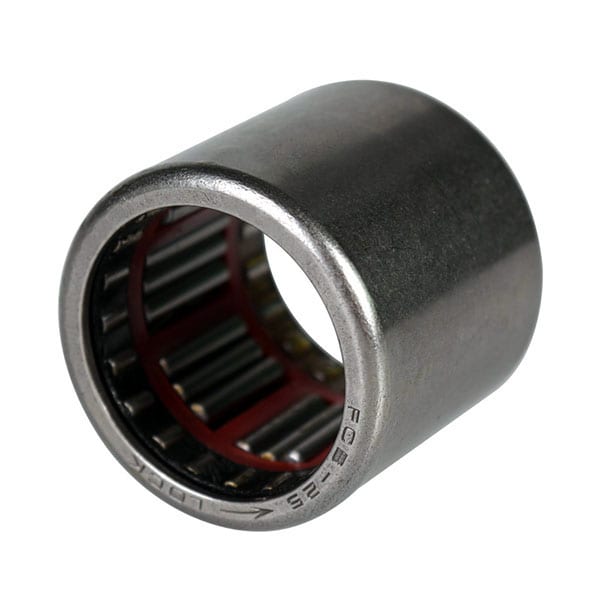

RCB 121616 Drawn Cup Hold Back Needle Roller Clutch Bearing

Product Description

 Data Sheet

Item RC RCB
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner dia. 19.05 mm
Outer dia. 25.4 mm
Thickness 25.4 mm
Torque capacity 20.9 Nm
Weight 26.5 g
Package singer package or as your requirements
Delivery time 7-10 days



Feature

Three pieces needles  equipped to be locking assembly function.
Torque increases double of the normal HF Model.
Allow high indexing frequencies due to their low mass.

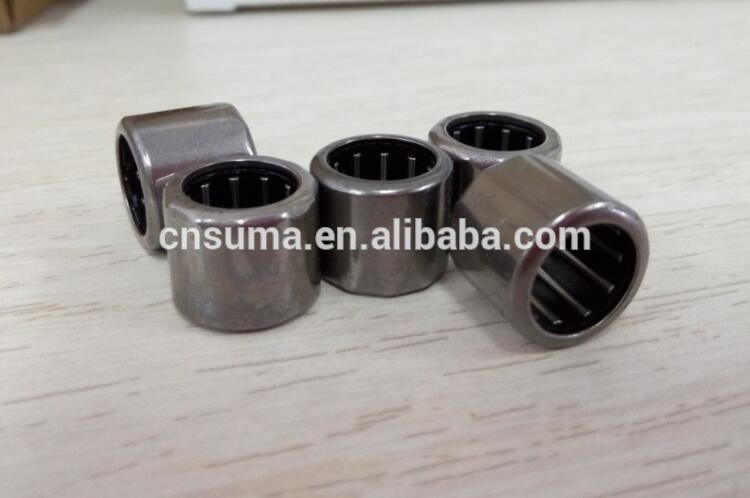

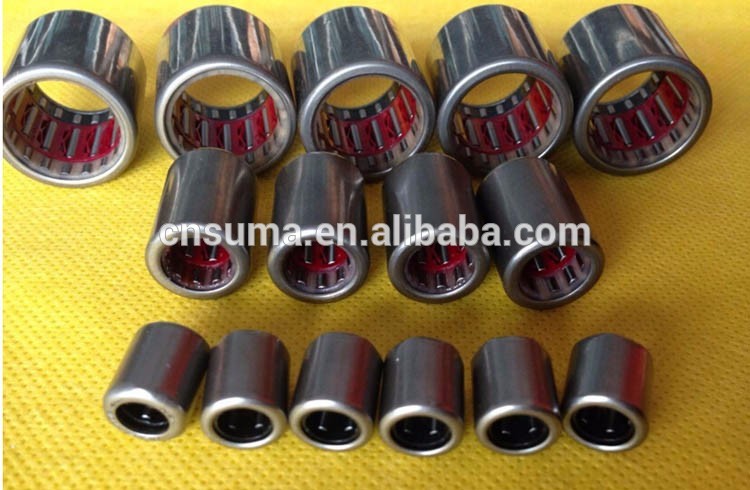

Different Sizes For Your Reference

Item

Weight

g

Main Dimension

Fw

mm

D

mm

C

mm

Torque

Nm

RC02

2

3.175

7.15

6.35

1.5

RC040708

3.5

6.35

11.112

12.7

1.9

RC040708-FS

3.5

6.35

11.112

12.7

1.9

RC061008

4.7

9.525

15.875

12.7

4.83

RC061008-FC

4.7

9.525

15.875

12.7

4.83

RC081208

9.2

12.7

19.05

12.7

7.9

RC081208-FS

9.2

12.7

19.05

12.7

7.9

RC101410

14.5

15.875

22.225

15.88

15.4

RC101410-FC

14.5

15.875

22.225

15.88

15.4

RC121610

17

19.05

25.4

15.88

20.9

RC121610-FS

17

19.05

25.4

15.88

20.9

RC162110

16.2

25.4

33.338

15.88

45

RC162110-FC

16.2

25.4

33.338

15.88

45

RCB061014

12

9.525

15.875

22.22

4.83

RCB061014-FS

12

9.525

15.875

22.22

4.83

RCB081214

16

12.7

19.05

22.22

7.9

RCB081214-FC

16

12.7

19.05

22.22

7.9

RCB101416

21.3

15.875

22.225

25.4

15.4

RCB101416-FS

21.3

15.875

22.225

25.4

15.4

RCB121616

26.5

19.05

25.4

25.4

20.9

RCB121616-FC

26.5

19.05

25.4

25.4

20.9

RCB162117

44.8

25.4

33.338

26.99

45

RCB162117-FS

44.8

25.4

33.338

26.99

45



Certifications

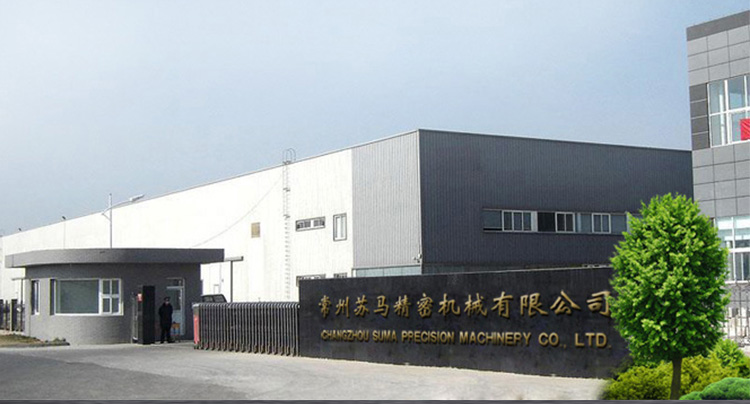

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Servesto make all of our old and new customers satisfied.

Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality

Our Services

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

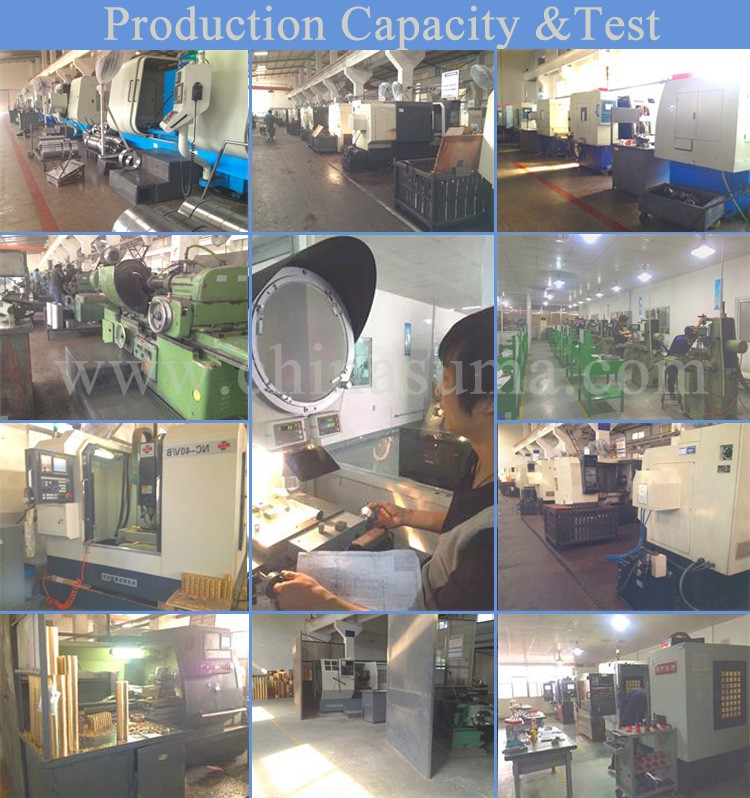

Production&Text
PackingShipping
FAQ

Q: Why do we choose your company?

A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.



Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of one way clutch bearing to check quality first.



If you have any needs,pls contact me at any time!
