Three Row Motor Pulley Bearing / Needle Roller Bearing for Motor Pulley HFL 283625

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Bore Size:: 30 mm

Brand Name:: SUMA of motor pulley bearing

Outside Diameter:: 37 mm

Model Number:: HFL of motor pulley bearing

Precision Rating:: P0 P6 P5 P4 P2

Seals Type:: non-sealed

Number of Row:: Double Row

Place of Origin:: Jiangsu, China (Mainland)

Product Name:: motor pulley bearing

Shaft Dia.:: 30mm

Weight:: 51g

OEM:: Accept

Package:: single box or as your requirements

Stock:: Rich

Delivery:: in stocks

Port:: Shanghai ; Ningbo

Material:: ST14

Application:: Light industry, printing, packing machinery

Packaging & Delivery

Selling Units:: Single item

Single package size:: 19X18X9 cm

Single gross weight:: 0.05 kg

Package Type:: Plastic bag, roll pack, carton box, pallet

Lead Time :: 2

Three Row Motor Pulley Bearing / Needle Roller Bearing for Motor Pulley HFL 283625

Product Description

Three Row Motor Pulley Bearing / Needle Roller Bearing for Motor Pulley HFL 283625

Structure of motor pulley bearing :

Metric size	Inch size	Marks
HFL	FCB	steel spring
HFL..KF	RCB	plastic spring
HFL..R		steel spring and knurls on outer ring
HFL..KFR		plastic spring and knurls on outer ring

Speciification of one way motor pulley bearing

Product name	Motor pulley bearing
Model	HFL0615KF
Material	ST14
Torque capacity	1.76Nm
Inner diameter	6mm
Outer diameter	10mm
Height	12mm
Weight	5g
Structure	Needle roller bearing
Application	Light industry, truckle, printing, textile, packing machinery
Package	Wooden box, tube, pulley, etc
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Catalogue of one-way motor pulley bearing for your choice

Shaft Dia.	Clutch Designation		Mass	Borndary Dimensions			Torque	Limiting Speed		Basic Load Ratings


				Fw	D	C		Shaft Rotating	Rotatng Outer Ring	C	Co
								Shaft Rotating	Rotatng Outer Ring	C	Co
								Min-1	Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
3	HFL0308KF	–	3	3	3.6	8	1	–	–	–	–
4	HFL0408KF	–	3.5	4	8	8	1.5	–	–	–	–
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	–	–
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	–	–
	–	HFL061012K	5	6	10	12	–	21000	12000	–	–
8	–	HFL081212K	6	8	12	12	–	20000	12000	–	–
	–	HFL081412K	7	8	14	12	–	19000	12000	–	–
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	–	–
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	–	–
12	–	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	–	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	–	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	–	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	–	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	–	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1

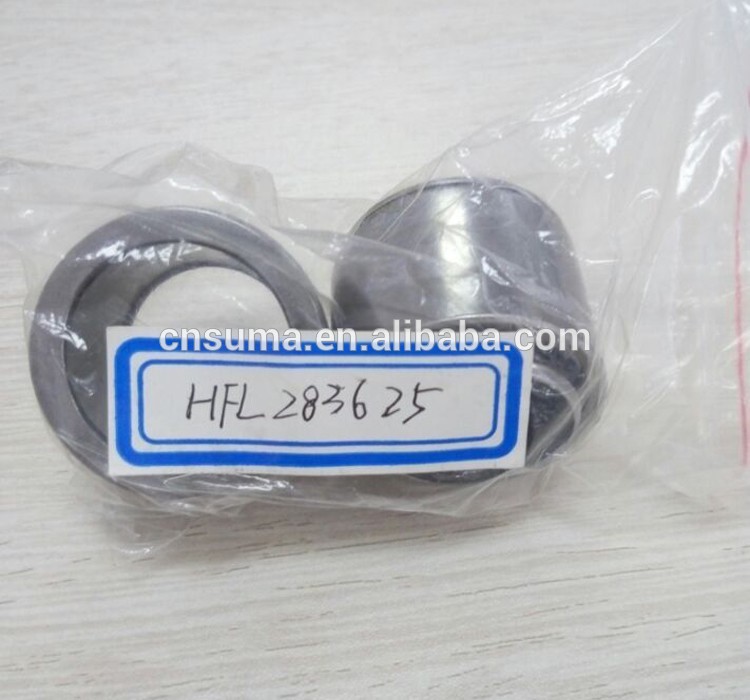

36		HFL283625			36
30	–	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
35	–	HFL3530	58	35	42	30	121	3900	3900	13	19.3

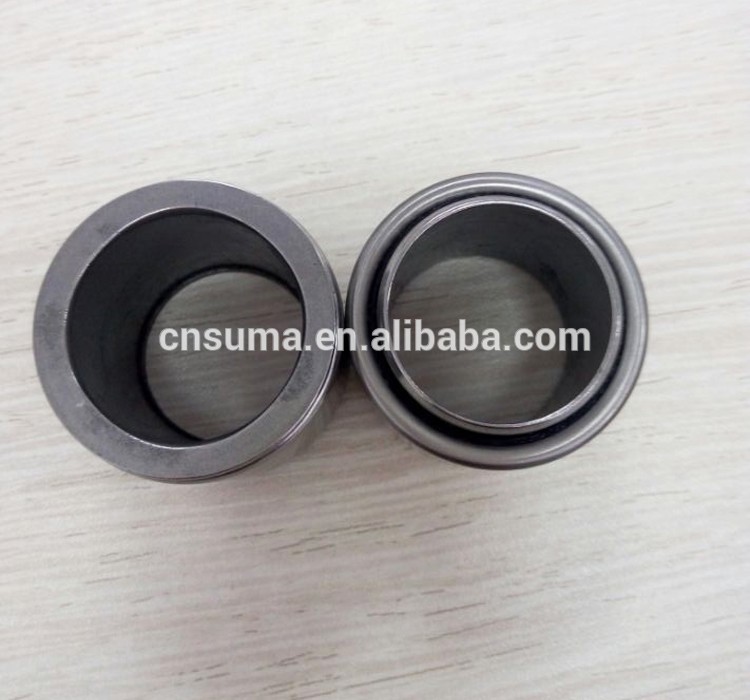

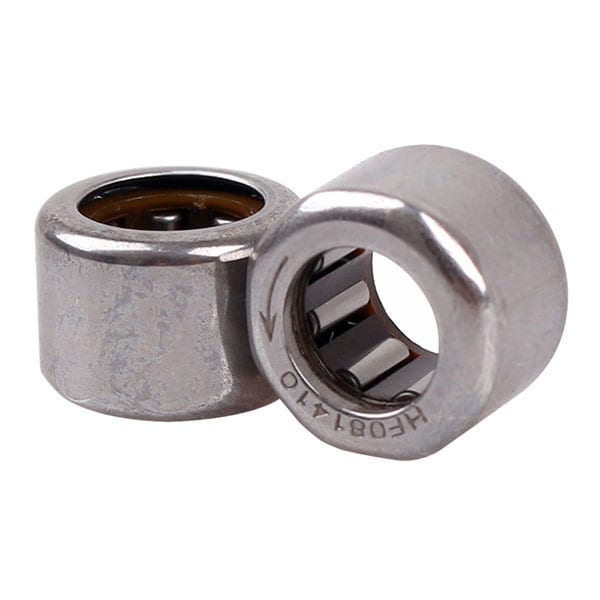

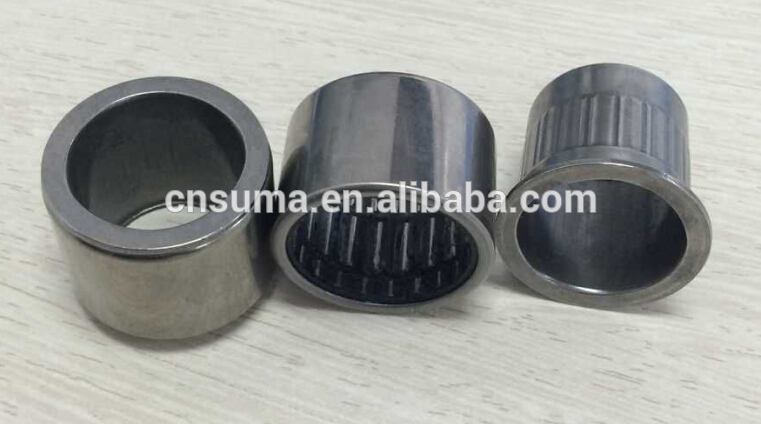

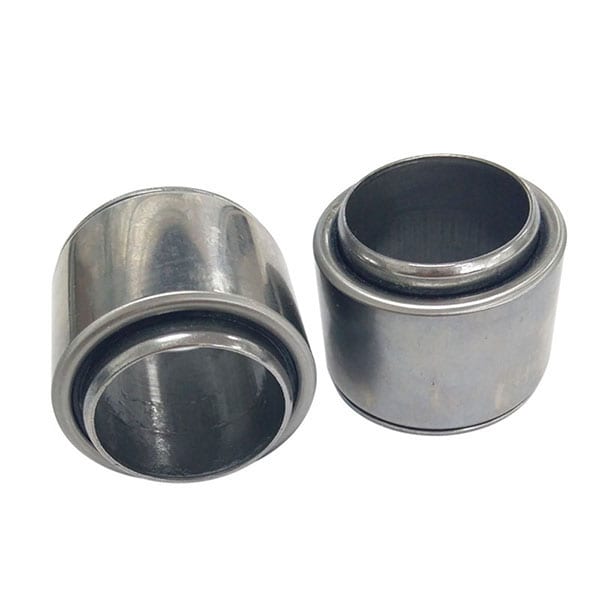

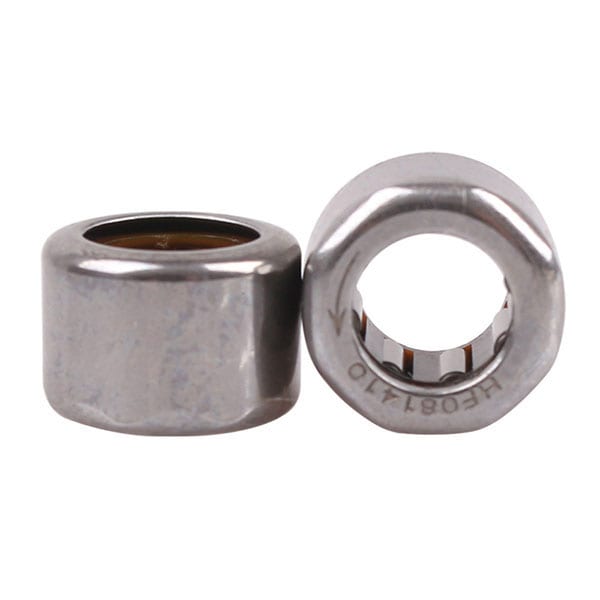

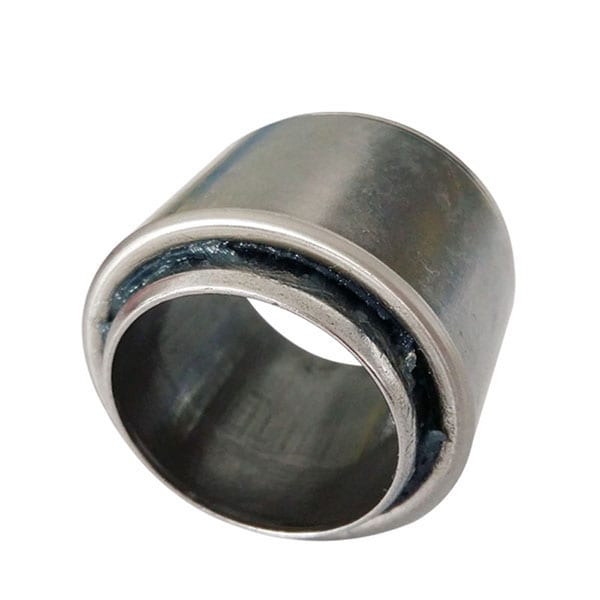

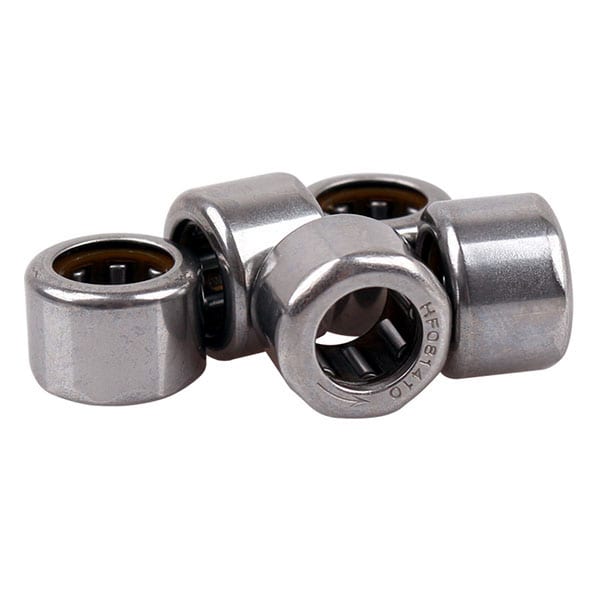

Detailed Images

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
